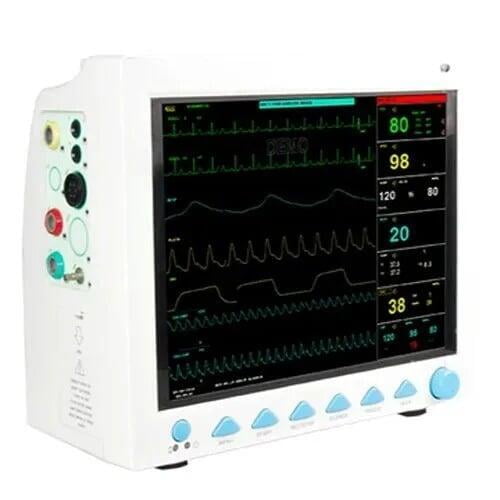

CMS-8000 ( 12.1'' )

Features:

• Suitable for adult, pediatric and neonatal patients
• 12.1'' TFT color LCD
• Parameters: ECG, NIBP, SpO2, Pulse Rate, Respiration, Temperature and IBP (upgradable)
• Maximum 8-channel waveform synchronous display
• Graphic and tabular trends for 96 hours for all formats
• Multi-screen format
• Powerful data management and storage capacity, 500 NIBP measurement data can be storage and recall
• AC/DC, built-in rechargeable lithium battery achieves uninterrupted monitoring
• Visual and Audio alarms, adjustable.
• Measurement Mode: Manual/Auto/Stat
• Warranty: 1 year

Specifications:

ECG:

• 5 lead or 12 lead selectable
• Input: 5 lead; RA, LT, RL, LL, V or R, L, N, F, C
• Lead selection: I, II, III, aVR, aVL, aVF, Vx, CAL
• Gain Selection: ×25, ×0.5, ×1, ×2, auto
• Sweep speed: 12.5mm/s, 25mm/s, 50mm/s
• Accuracy: ±1bpm or ±1% whichever is grater
• Protection: Withstand 4000V AC/50Hz voltage in isolation against electrosurgical and defibrillation
• Calibration signal: 1mV±5%
• Operation modes, Diagnostic, Monitor, Surgery
• Heart rate range: Adult: 15-3000bpm; Pediatric/Neonatal: 15-350bpm
• Measurement range: -2.0mV to 2.0mV
• ST detection: YES,
• Arrhythmia analysis: YES
• Alarm: YES, audible and visual alarm, alarm events recallable.

 NIBP:

• Method: Oscillometry
• Mode: Manual/Auto/STAT
• Measurement Range: adult 10-270mmHg
• Measurement Type: Systolic, Diastolic, Mean
• Resolution: 1mmHg
• NIBP Accuracy: Mean ±5mmHg, SD ±8mmHg
• Alarm: SYS/DIA/MEAN

Respiration:

• Method: RA-LL impedance
• Measurement range: Adult: 0-120rpm, Paediatric/Neonatal: 0-150rpm
• Apnea Alarm: YES

SpO2:

• Measurement range: 0%-100%
• Accuracy: ±2% (70%-100%); 0%-69% unspecified.
• Alarm range: 0-100%

 Pulse Rate:

• Measurement range: 10 - 270
• Resolution: 1bpm
• Accuracy: ±2pm or ±2%

Temperature:

• Resolution: 0.2 0C
• Channel: Dual-channel
• Measurement range: 0-50 0C

IBP (Upgradable):

• Channel: 2
• Pressure transducer: Sensitivity: 5(mV/V/mmHg)
• Transducer sites: ART, PA, CVP, RAP, LAP, ICP
• Alarm range: -10 to 300 mmHg

Other Specifications:

• Net Weight: 3.9kg

 Content of the box:

• Monitor
• Power connector
• Adult/Neonatal cuff + cable (based on selection)
• ECG leads
• SpO2 probe
• Temperature probe
• User manual
