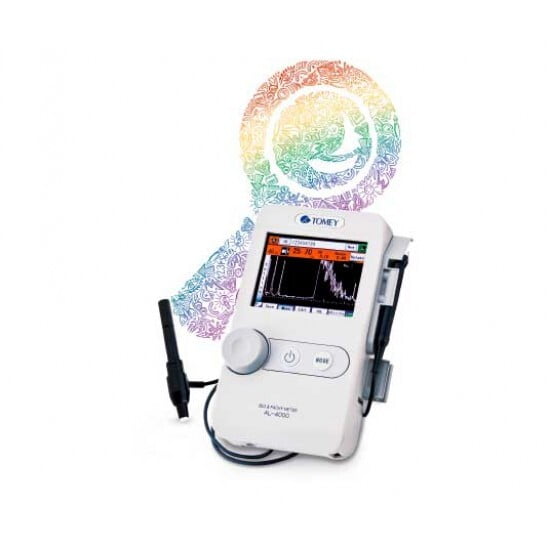

A-SCAN WITH PACHYMETER

One vision, Two sharp eyes with Our Innovation

• Axial Length & Corneal Thickness 　 Measurements.
• Pachymetry
• Compact Body
• Wireless Communication
• IOL Power Calculation with PC kit
• Ultrasound Technology
• Automatic Tone-Assisted Measurement
• Contact & Immersion Mode
• Rechargeable Battery with AC adapter
• Multiple IOL Power Calculation
• Wide Measurement Range
• Solid State Probes.





  BIOMETRY(A-Scan)

  PACHYMETRY

  Probe Type Solid state (Immersion Option) Fixlight Built in the probe,Red LED Transducer frequency 10MHz Tip diameter 6.0mmφ(concave) Dimension/Weight 14.0mmφx 98mm/40g  Probe Modes Contact, Immersion Measurement Modes Automatic Hand-held, Chin Rest Manual Foot switch Eye Modes Dense Cataract, Aphakic, Pseudophakic(Silicone, Acrylic & PMMA) Normal Measurement range Axial length 13.00-45.00mm ACD 1.80-7.00mm Lens thickness 2.00-6.00mm Accuracy + _ 0.1mm Resolution 0.01mm IOL Calculation Formulas MAIN UNIT SRK/T PC KIT SRK/T SRK2 HOLLADAY Hoffer Q HAIGIS(Optimized, Standard) SHOWA Double K SRK/T

  Probe Type Solid state (Disposable Tip Option) Transducer frequency 20MHz Tip diameter 1.5mmφ with an angle of 45° (flat) Dimension/Weight 8.8mmφx 90mm / 30g Bias setting range   60-130% -600 - +450μm Measurement range 150-1,500μm Accuracy + _ 5μm Resolution 1μm A-Scan Diagnosis PROBE Type Solid state Transducer frequency 10MHz Tip diameter 5mmφ(flat) Dimension/Weight 8mmφx 97mm / 30g MAIN UNIT Display 3.5 inch TFT color LCD Dimension / Weight 109(W) x 52(D) x 166(H) /470g AC adapter Voltage 100-120/220-240 VAC Frequency 50/60Hz Power consumption 10/12 VA Battery Lithium ion Rechargeable battery
